壁掛天線

Your location：Front page / Product / 壁掛天線 / 4G/LTE wall -mounted antenna 5/7DBI

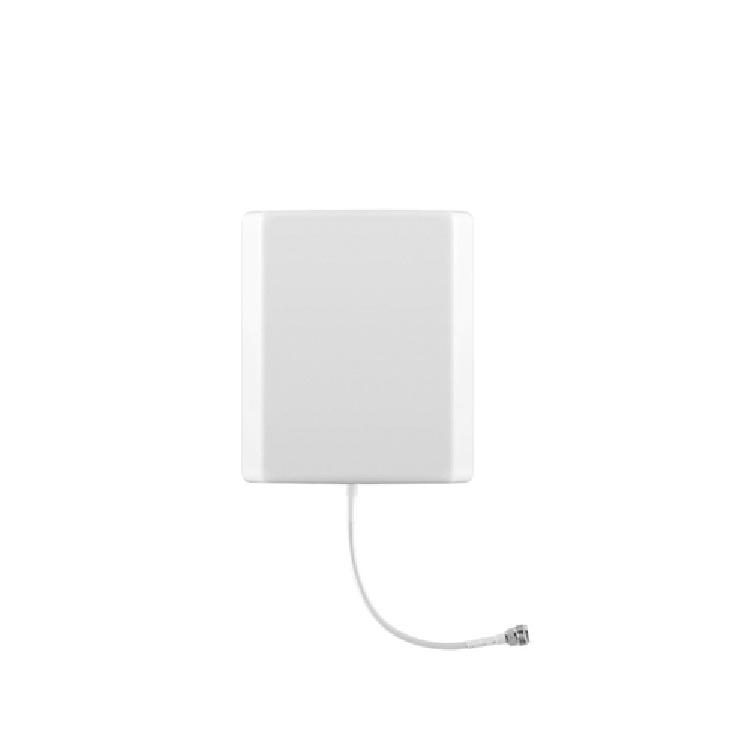

4G/LTE wall -mounted antenna 5/7DBI

From the supplier and OEM business from the wireless infrastructure to the wireless communication carrier, the full set of new antenna products have mainly included: the waterproof antenna used in harsh environments, using patch technology broadband antennas, and has a plate antenna of electric control inclination. High performance miniaturized antenna and broadband microwave devices in each system. The company has become an excellent supplier in the antenna industry, with a good reputation in the same industry.。

Contact information

Product Details

Electrical parameter
Model AC-D7027W08

Frequency 698-960/1710-2700MHz

Bandwidth 262/990MHz

Back and rear ratio\\u003e 20dB

Gain 5/7dbi

Wave ratio ≤ 2.0

Radiation Direction

Horizontal wave petal width 68 °

Vertical wave petal width of 58 °

Polarization method vertical

Lightning protection DC grouped

Enter the maximum power 50W

Impedance 50?

Connection n female

Line type RG58U

The feed line length 30cm

Product material ABS

Installation Wall Mount or Pole Mount

Support rod diameter ?30-直50mm

Mechanical parameter

Antenna size 207x180x45mm

Weight 500g

Work temperature -40 ℃ to 70 ℃

Wind resistance 60m/s
