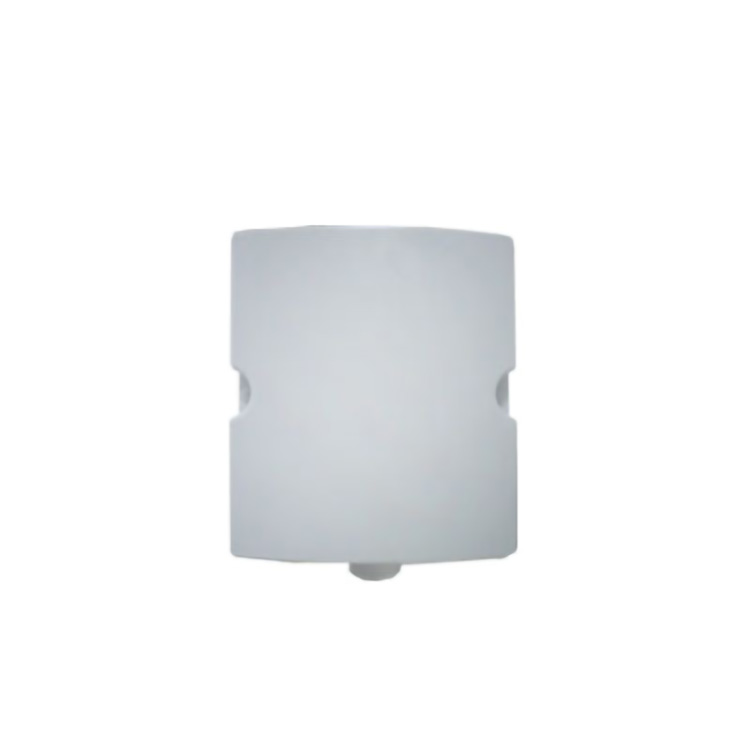

3G wall -mounted antenna 7/10dbi

From the supplier and OEM business from the wireless infrastructure to the wireless communication carrier, the full set of new antenna products have mainly included: the waterproof antenna used in harsh environments, using patch technology broadband antennas, and has a plate antenna of electric control inclination. High performance miniaturized antenna and broadband microwave devices in each system. The company has become an excellent supplier in the antenna industry, with a good reputation in the same industry.。

Contact information

Product Details

Electrical parameter
Model AC-D8025W12

Frequency 800-960/1710-2500MHz

Bandwidth 160/790MHz

Back and rear ratio\\u003e 20dB

Gain 7/10dbi

Wave ratio ≤1.5

Radiation Direction

Horizontal wave petal width of 70 °/60 °

Vertical wave petal width of 55 °/45 °

Polarization method vertical

Lightning protection DC grouped

Enter the maximum power 50W

Impedance 50?

Connection n female

Product material ABS

Installation Wall Mount or Pole Mount

Support rod diameter ?30-直50mm

Mechanical parameter

Antenna size 225x185x50mm

Weight 500g

Work temperature. -40 ℃ to 80 ℃

Operating Temperature -40℃ to 80℃

RoHS Compliant YES
