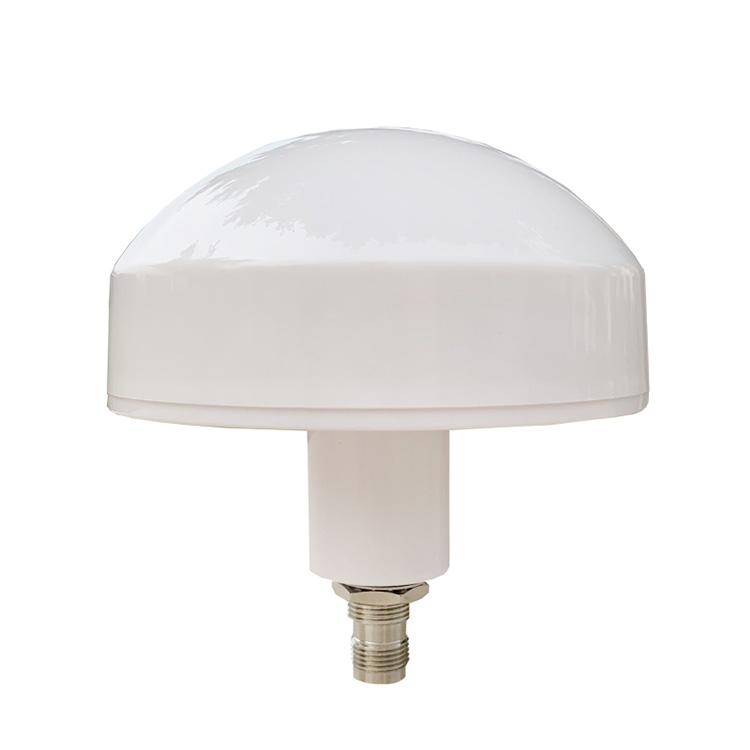

GPS navigation antenna 38dbi

From the supplier and OEM business from the wireless infrastructure to the wireless communication carrier, the full set of new antenna products have mainly included: the waterproof antenna used in harsh environments, using patch technology broadband antennas, and has a plate antenna of electric control inclination. High performance miniaturized antenna and broadband microwave devices in each system. The company has become an excellent supplier in the antenna industry, with a good reputation in the same industry.。

Contact information

Product Details

Electrical parameter
Model AC-GPS-16

Frequency 1575.42MHz ± 1 MHz

Polarization RHCP

Gain 5DBIC (zenith)

Bobry <1.5

Input impedance 50Ω

Lama gain 38dbi

Noise Figure <1.3

Insert loss of filter <3dB

Attenuation attenuate

Attenuation 12db@CF 50MHz/16DB@CF-50MHz

DC voltage 3 ~ 5V DC

DC current 18 ~ 35mA

The amplifier resident wave ratio \\u003c2.0

Amplifier Omni-Direction

Connect TNC FEMALE

Antenna material ABS

Vibration value 10 to 55Hz with 1.5mm amplitude 2hours

Mechanical parameter

Size φ95x74mm

Weight 129g

Work temperature -40 ℃ ~ 80 ℃

Humidity up to 95%

Waterproof IP67 (Not Include The Line Port)
